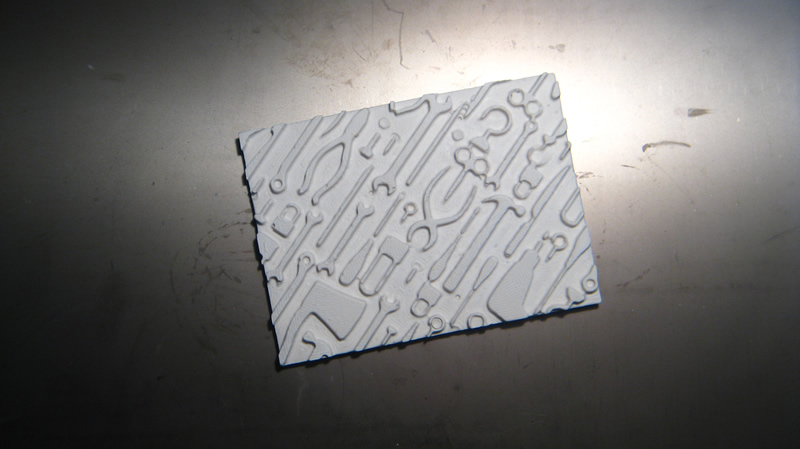

Tools Relief – Cast Attempt 2 – Success!

succesful tools relief
I re-milled my tools relief mold, correcting the problems inherent in the design of the first cast.  I made the border around the tools relief wider and deeper in order to have a rim to hold the poured material before creating the final cast.  In order to conserve wax (it is $29.00 a bar), I melted down used wax and shavings from previous molds.  There was some sediment / impurities that worked their way into the wax, but they sunk to the bottom and did not affect the mold.

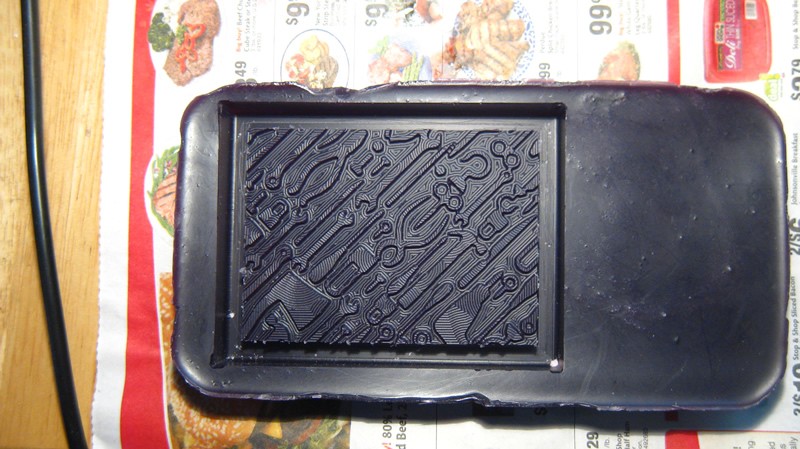

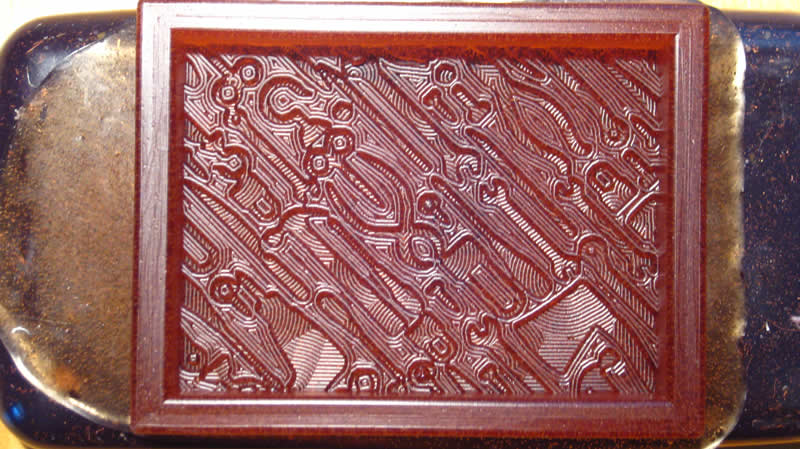

Machinable Wax

succesful tools relief

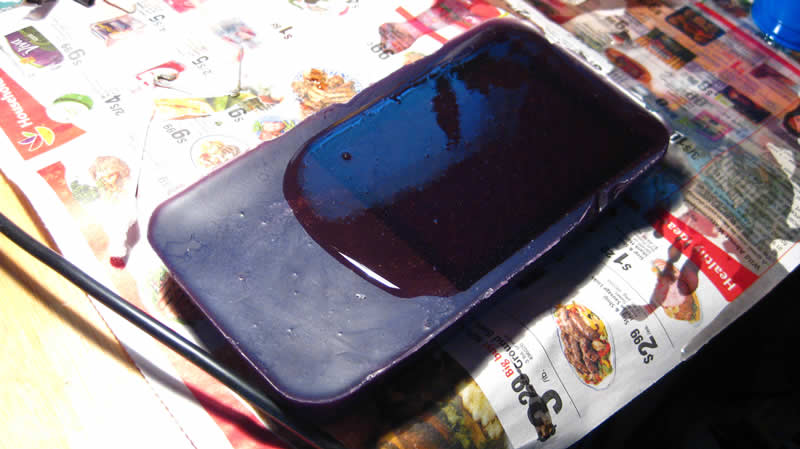

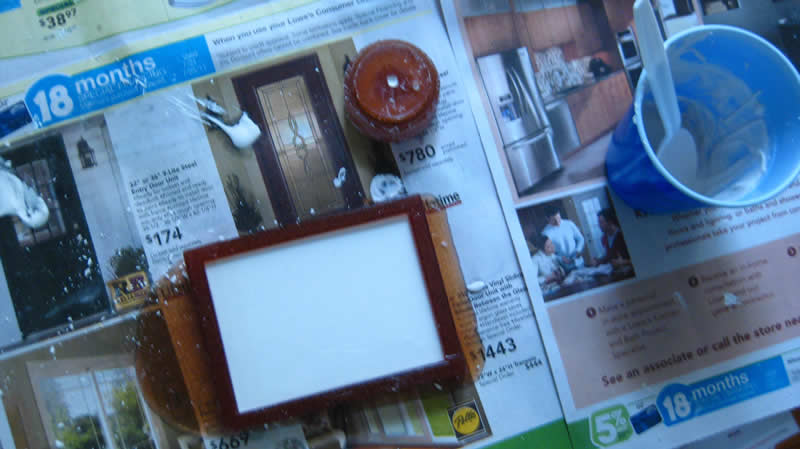

Poured Rubber Mold
succesful tools relief

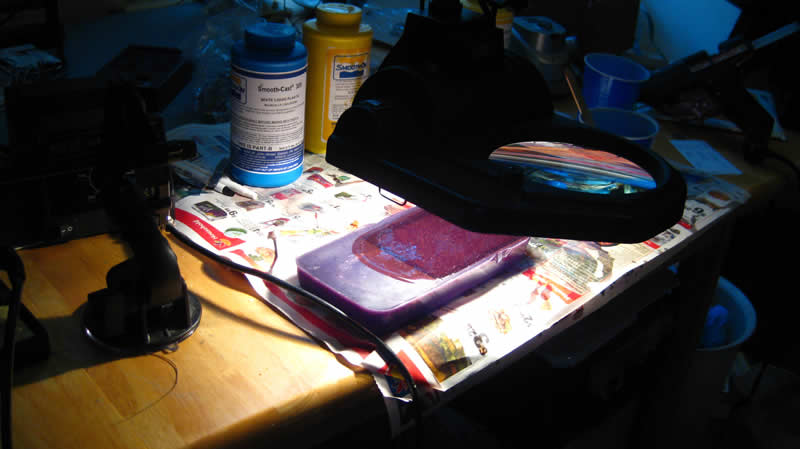

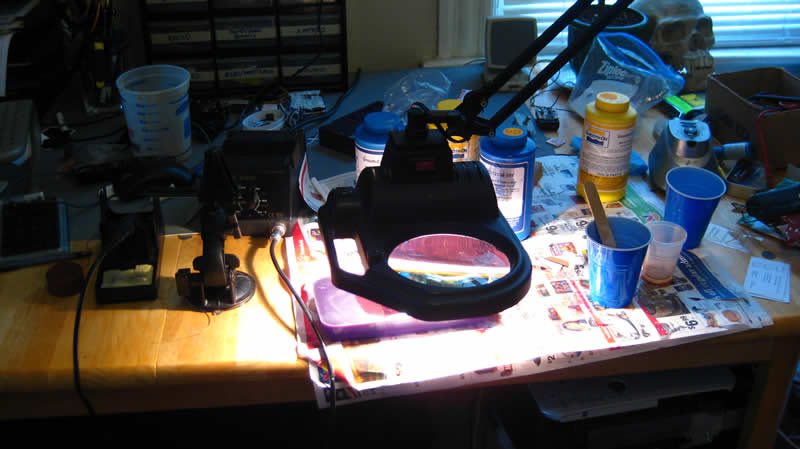

Curing the Rubber Mold with a Lamp

succesful tools reliefsuccesful tools relief

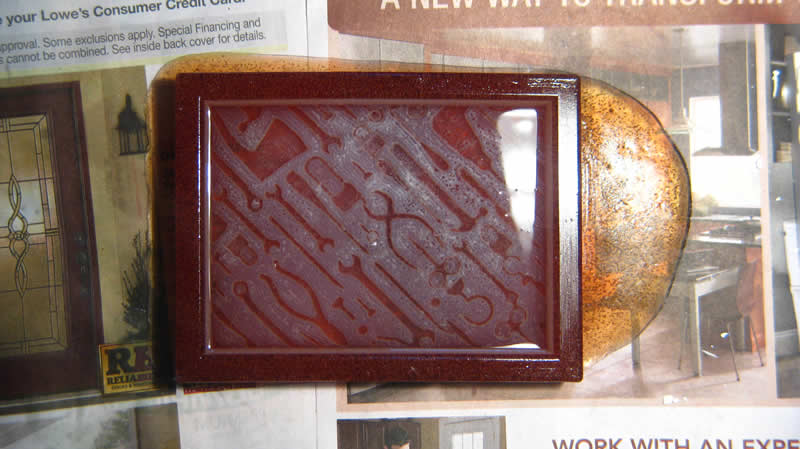

Finished Urethane Mold – Much Better!

succesful tools relief

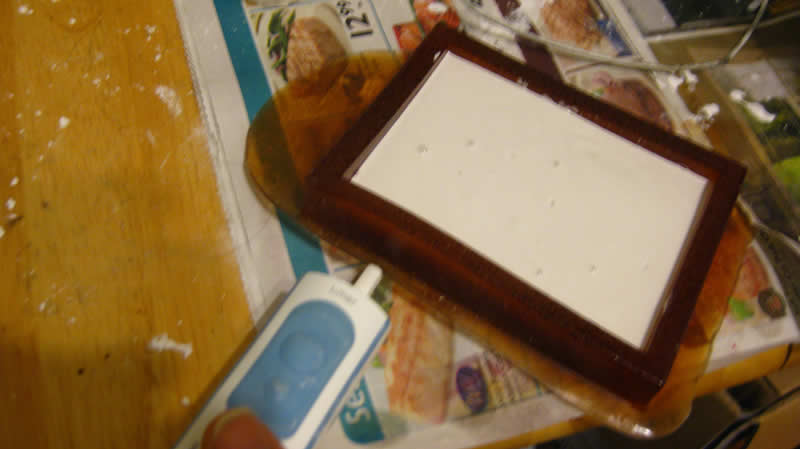

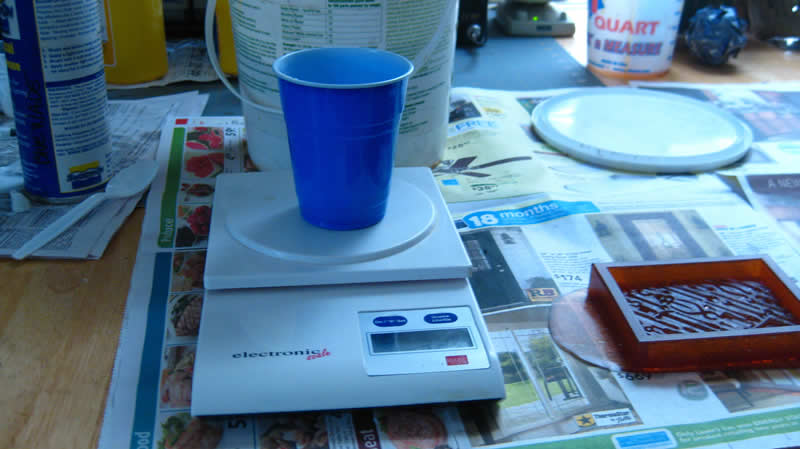

Measuring and Pouring the Smooth Cast Plastic and Hydrostone
succesful tools reliefsuccesful tools relief
succesful tools relief

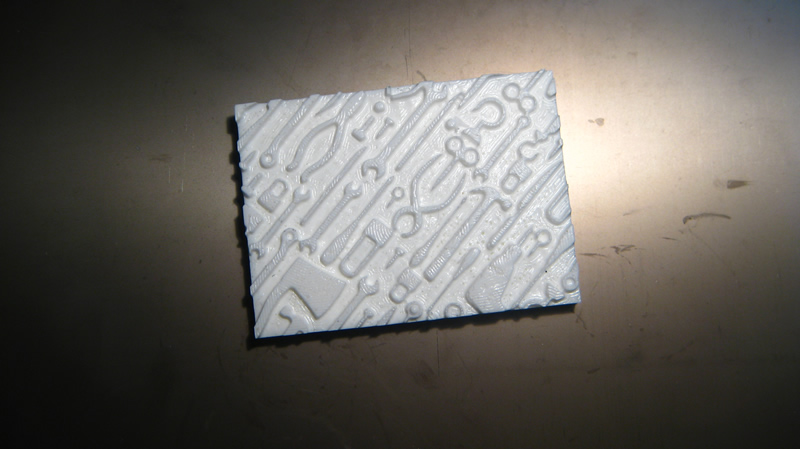

Plastic Tools Relief Cast
succesful tools relief

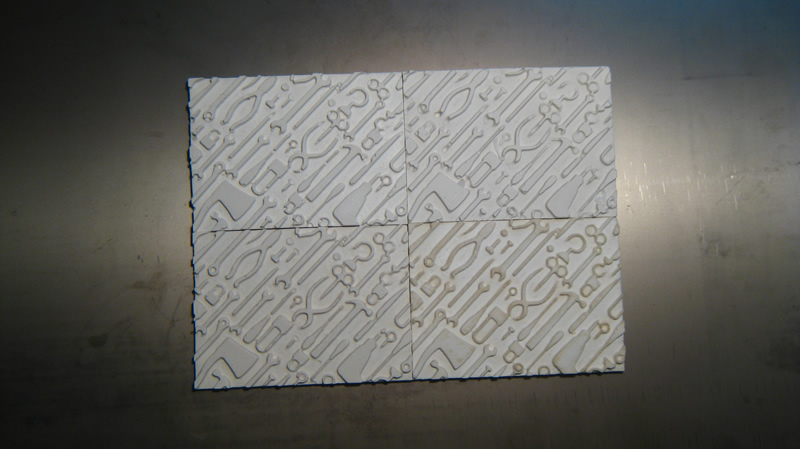

Hydrastone Tools Relief Cast
succesful tools relief
